Feature:

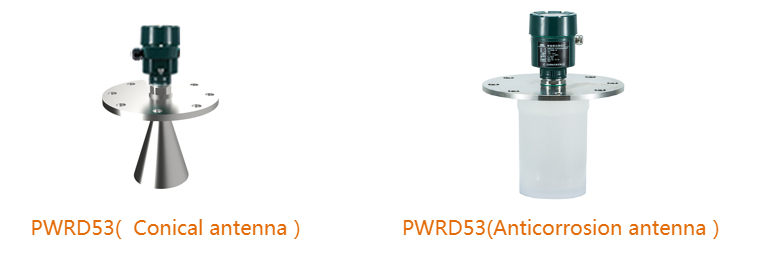

tapered antenna.

Should be used:

mainly used in various storage containers, liquid, slurry level measurement.

(e.g. : crude oil, light oil storage tanks, volatile liquid storage tanks, slurry storage tanks).

Maximum range: 30 m

Process connection: screw thread, flange

The process temperature: - 40 ~ 250 ℃

Process pressure: (-0.1 ~ 2.0)MPa

Fine degrees: ±8 mm

Reduplication: ±2mm

Frequency range: 6.8GHz

Signal output: (4~20)mA/HART agreement (24V DC two-wire system/four-wire system)

(4~20)mA/HART agreement (220V AC four-wire system)

Explosion-proof grade: Exia IIC T6 Ga

Protection class: IP 67
